Butterfly Valve
Construction
![e8fe7cec7976593335c20f2894c28556_1668249041_2864.jpg](http://khv.co.kr/data/editor/2211/e8fe7cec7976593335c20f2894c28556_1668249041_2864.jpg)
Butterfly Valve
![e8fe7cec7976593335c20f2894c28556_1668249056_5667.jpg](http://khv.co.kr/data/editor/2211/e8fe7cec7976593335c20f2894c28556_1668249056_5667.jpg)

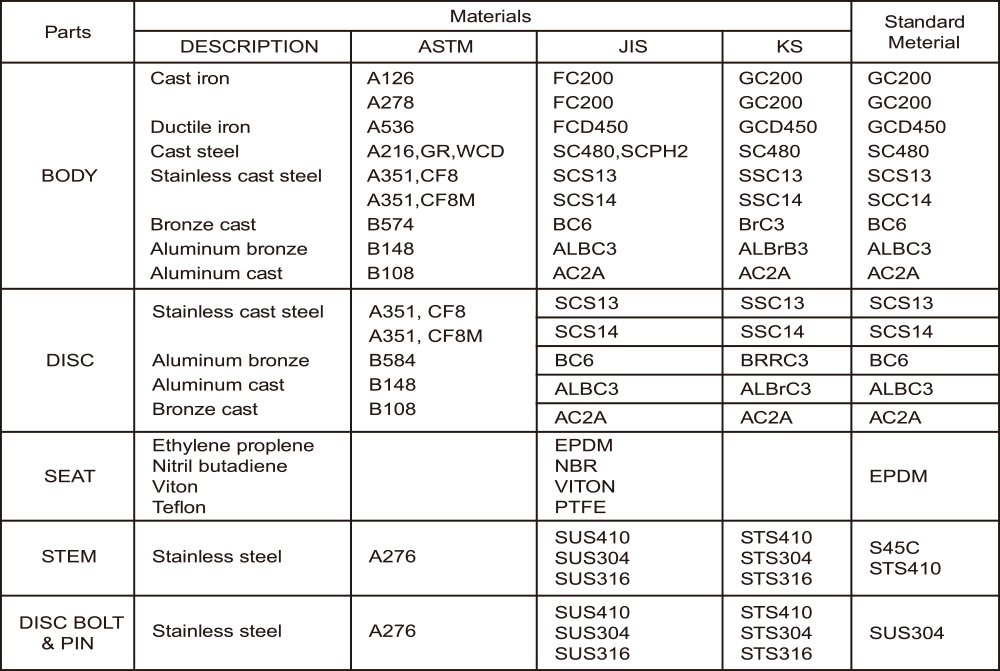

MATERIAL TABLE VALVE Dimensions

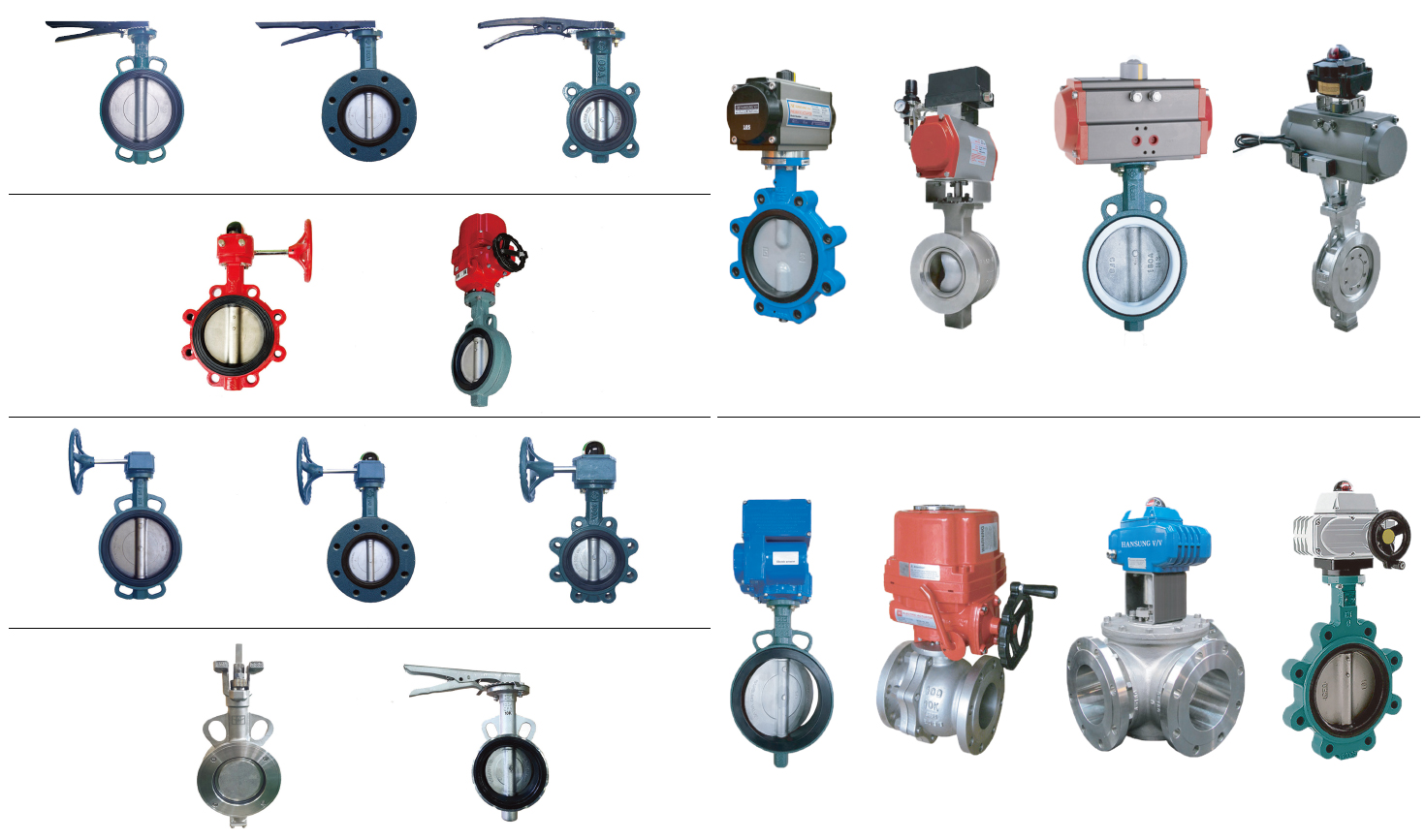

Butterfly Valve
![e8fe7cec7976593335c20f2894c28556_1668249586_6642.jpg](/data/editor/2211/e8fe7cec7976593335c20f2894c28556_1668250564_08.jpg)

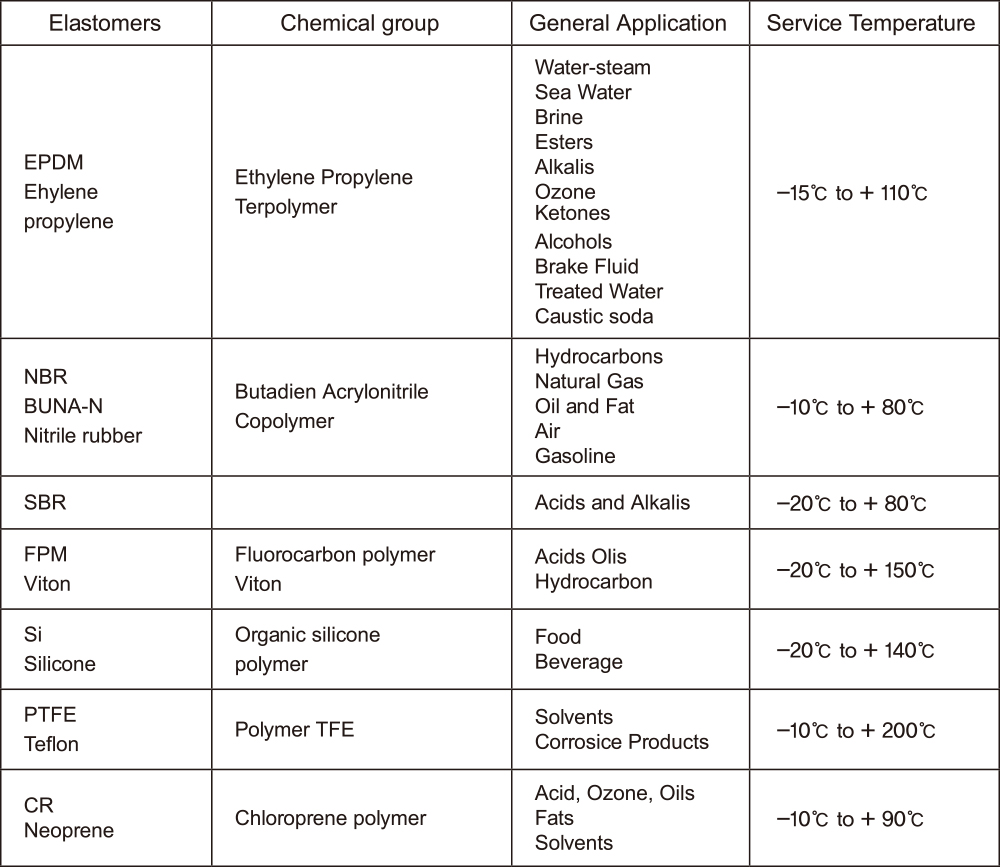

Material Engineering Data
Elastomer's Characteristic and properties are derived from the manufactures and purely indicative.
It means that actual working conditions and limit may differ from the values referred. Sine many factors influence corrosion and abrasion due to type of fluid, concentration, temperature, turbulence, impurities and etc, the final choice is to be taked by the customer.
![](/data/editor/2211/e8fe7cec7976593335c20f2894c28556_1668250618_5926.jpg)
